Anderson-Bolds - Convectronics Air Heaters

Convectronics manufactures first class heaters, temperature sensors and precise controls. We offer a wide variety of industry standards available for Just In-Time Delivery and manufacturing capabilities which cover a broad spectrum of customized products for most applications. With over twenty years of knowledge and experience in temperature sensing and controls, Convectronics is able to offer you elite technical support and service along with the highest quality products. Our Technical Staff is waiting to assist you with all your design and application needs.

Convectronics Air Heaters use state of the art materials and can be found throughout the world in countless industries.

Air heaters work by continuously passing air/fluid over a heated element. This air/fluid is heated and then discharged from the heater, giving a consistent supply of reliable heat. The material being heated can either be inert gas, compressed air or air from a regenerative blower. Unfiltered gas that may contain dirt, grease, oil, oil vapors, corrosive or reactive gases along with volatile or combustible gases should never be used. It should be noted that material should always be flowing over the element before and even after power is supplied to the heater or the result may be overheating of the element and reduced life.

Convectronics Single Pass Convectronics Quartz Tube Heaters	Convectronics Style 001Quartz air heaters require compressed air for operation, up to 300 SCFH. Convectronics air heaters can have up to 240 volts AC applied and provide to 4650 watts resulting in outlet temperatures up to 1300 F. Standard Tubing Adaptors on ALL Series 001 Air Heaters have a 1/4 NPT Female Thread for use with a compression tube fitting (not supplied).	Convectronics Style 001 Quartz Air heaters should be used with Solid State controls. Because of the low mass and quick response of these heaters, use only phase angle power control (not zero cross) with voltage limiting.
Convectronics Metal Shell Air Heaters	These Convectronics Style 001 fast responding heaters deliver up to 1400�F air temperatures through a protective metal shell. The element design insures faster response, higher temperature, and longer life than any other heater of this type on the market today. Style 001	Features: Air temperatures up to 1400�F Flow rates up to 400 SCFH Long life Fast response Choice of five wattages up to 1250 watts Construction: 1/2 diameter 304 stainless steel body Copper tee with 3/8 NPT air connection Epoxy sealed 2 Ft. leads High temperature ferrous alloy element
Convectronics Triple Pass Housings/Elements	Convectronics Style 003 Triple pass air heater can provide up to 6000 watts and up to 1500 degrees. the outer shell provides the three pass system, heating the air flow three times and provides a cooler out shell temperature.	1/4' NPT connection 10 and 13 inch long housings 2000, 2800, 3600, 5000, and 6000 watts, Style 003

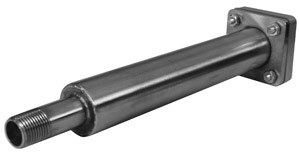

Triple Pass Flanged Housings/Elements	Convectronics Style 003 Triple pass air heater can provide up to 6000 watts and up to 1500 degrees. the outer shell provides the three pass system, heating the air flow three times and provides a cooler out shell temperature.	2.5x2.5 or 4x4 inch flange connection. 11 and 14 inch long housings 2000, 2800, 3600, 5000, and 6000 watts, Style 003
Convectronics In-Line Pipe Heaters	The Convectronics Style 007 Fluid Heater uses the same element configuration as the Styles 001 and 003 but in a stainless steel pipe. This construction is suited to in-line applications where pipe threads are required at both inlet and outlet ends. Electrical terminations are offered in the form of lead wires and as feedthrus rated up to 150 psi. These heaters can be used to heat substances other than air as long as the fluid is non-conductive and does not chemically react with 300 series stainless steel, silver solder, nickel, aluminum oxide or the epoxy potting material used on the leaded model. This product must be properly grounded and fused.	3/8 Pipe Rating - 800W 120V 1/2 Pipe Rating - 4000W 220V 1 1/4 Pipe Rating - 6000W 220V Style 007
Convectronics High Volume In-Line Pipe Heaters	This Convectronics 007-10197 heater is intended for heating air at high flow rates (up to 60 SCFM) to 1000�F maximum and features threaded inlet and outlet connections. A high volume air source (such as a regenerative blower) is connected to the 2-1/2 NPT inlet and a variable voltage source is connected to the elements via the junction box.	Features: High volume flow 60 SCFM (Pressure drop across heater is approximately 1.5 psi) Temperature 1000�F maximum at outlet Power required 18 KW at 240 volts 3 phase Construction: Heater element High temperature ferrous alloy Heater shell 2-1/2 NPT type 304 stainless steel Junction box Cast aluminum box 3/4 hub
Convectronics Open Coil Convection Heaters	CONVECTRONICS offers the same coil configuration used in the Styles 001 and 003 Air Heaters as a design concept for convection heating applications in ducts and plenium chambers. This construction is stronger, more efficient and has a longer life than other types of convection heating elements. These elements are available mounted on frames as shown or as elements alone for those who use their own frames. Other designs and wattages are available upon request. Please let us know what your requirements are if the designs shown do not fit your needs.	Single Element, from 100 to 4250 watts, and Dual Element Heater , 100 to 8550 watts, available. Wattages are also variable by voltage regulation and wiring. Because of the low mass and quick response of these heaters, use only phase angle power control (not zero cross) with voltage limiting. Sytle 007
